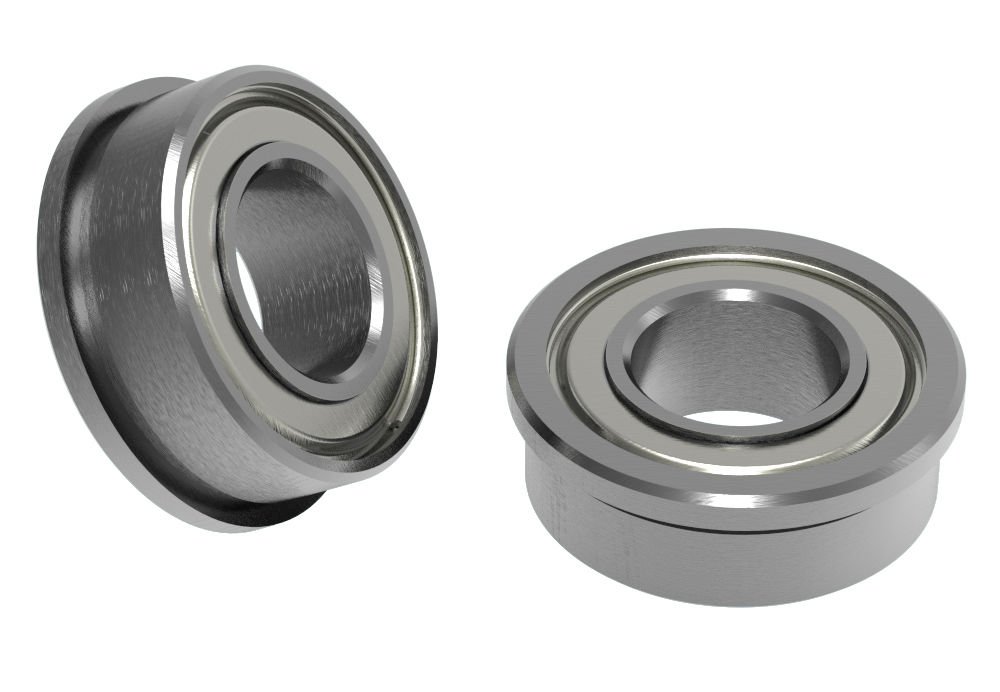

F 684 ZZ 4x9x4 Flanşlı Rulman
(0) Yorum - 0 Puan
Kategori
Fiyat
1,82 USD + KDV
*77,38 TL den başlayan taksitlerle!
77,38 TL
F 684 ZZ 4x9x4 Flanşlı Rulman
F 684 ZZ 4x9x4 Flanşlı Rulman
F 684 ZZ 4x9x4 Flanşlı Rulman
F 684 ZZ 4x9x4 Flanşlı Rulman
F 684 ZZ 4x9x4 Flanşlı Rulman
F 684 ZZ 4x9x4 Flanşlı Rulman
F 684 ZZ 4x9x4 Flanşlı Rulman
Technical Data
| Inside Ø (mm): | 4 |
| Outside Ø (mm): | 9 |
| Width (mm): | 4 |
| Tolerance for inside-Ø (mm): | 0/-0,008 |
| Tolerance for outside-Ø (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside-Ø (mm): | 0,27/-0,043 |
| Bore: | cylindrical |
| Extended Inner Ring: | no |
| max. Operating Temperature: | +120°C |
| min. Operating Temperature: | -20°C |
| Tolerance Class: | ABEC 1 / P0 |
| Internal Clearance: | CN (Standard) |
| Seal: | ZZ |
| Ring Material: | Rolling Bearing Steel |
| Rolling Element Material: | Rolling Bearing Steel |
| Cage Material: | Sheet Steel |
| Sealing material: | Sheet Steel |
| Type of lubrication: | greased |
| Flange Ø (mm): | 10.3 |
| Lifetime lubricated: | yes |
| Magnetic: | yes |
| Flange Width (mm): | 1 |
| Noise and vibration testing: | Class V |
| Norm: | DIN 625-1 |
| Item weight: | 1,1 g |
