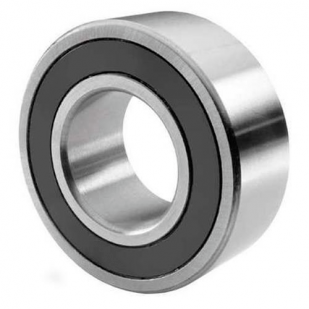

683 2RS 3x7x3 Rulman
(0) Yorum - 0 Puan
Kategori
Fiyat
0,81 USD + KDV
*36,85 TL den başlayan taksitlerle!
36,85 TL
683 2RS 3x7x3 Rulman
683 2RS 3x7x3 Rulman
683 2RS 3x7x3 Rulman
683 2RS 3x7x3 Rulman
683 2RS 3x7x3 Rulman
683 2RS 3x7x3 Rulman
683 2RS 3x7x3 Rulman
Technical Data
| Inside Ø (mm): | 3 |
| Outside Ø (mm): | 7 |
| Width (mm): | 3 |
| Tolerance for inside-Ø (mm): | 0/-0,008 |
| Tolerance for outside-Ø (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Bore: | cylindrical |
| Extended Inner Ring: | no |
| max. Operating Temperature: | +100°C (briefly up to +120°C) |
| min. Operating Temperature: | -20°C |
| Tolerance Class: | ABEC 1 / P0 |
| Internal Clearance: | CN (Standard) |
| Seal: | 2RS |
| Ring Material: | Rolling Bearing Steel |
| Rolling Element Material: | Rolling Bearing Steel |
| Cage Material: | Sheet Steel |
| Sealing material: | NBR |
| Seal Colour: | Black |
| Type of lubrication: | greased |
| Lifetime lubricated: | yes |
| Magnetic: | yes |
| Noise and vibration testing: | Class V |
| Norm: | DIN 625-1 |
| Item weight: | 0,4 g |
